Virtual Link – Total Air‑Suspension Mastery for Your C7 Audi
(2013–2018 A6 │ S6 │ RS6 │ A7 │ S7 │ RS7 │— factory air‑ride required)
You know that sinking feeling when you creep up on a speed‑bump and wonder if you’ll scrape your bumper? Or the frustration of crawling under your Audi, fiddling with lowering links until your back aches — only to still end up with a lopsided ride? Been there.
Enter Virtual Link. We’re a few Audi nuts in California who got tired of hacks and headaches. So we built a tiny Wi‑Fi module that snaps into your factory air‑suspension harness, no cuts or splices, no dealer visits. Five minutes later, you’ve got millimetre‑perfect control over each corner — lift for clearance, slam for show, or tune your ride height on the fly, straight from your phone’s browser.
What used to take you hours and a toolbox, now takes you a single tap. No more wrestling links, no guessing games, and no permanent wiring mods. Just effortless, reversible, pro‑grade suspension tuning — because your Audi deserves nothing less.
The Frustration We Fixed
-
Hours under the car: Mechanical lowering links force you to jack, tweak, test, repeat—only to discover it’s still not even.
-
One‑height compromise: Ride too low and you scrape; ride too high and you ruin handling and looks.
-
Permanent wiring mods: Some “controller” boxes demand taps, splices, or cryptic CAN rewiring. One mistake and you’re at the Audi dealer to re‑flash ECUs and modules.
Virtual Link wipes all that pain away. Pop one trim panel, click our OEM‑grade harness in line, power up Wi‑Fi, and you’re free to raise, lower, calibrate, and fine‑tune in just a few minutes.
Six Reasons Enthusiasts Go Virtual
| 🔧 Feature | 🚀 Benefit |
|---|---|
| 5‑Minute Plug‑&‑Play | Snap‑fit harness + bracket mounts. No tools, no cuts, fully reversible for warranty days. |
| Browser‑Based Wi‑Fi Control | Any device, any OS—just join the hotspot and tweak heights. No App Store account, no Bluetooth pairing jitters. |
| Individual‑Wheel Adjustment | Level a loaded trunk, corner‑balance for track sessions, or dial crazy front‑rake for photos. millimeter precision, live read‑out. |

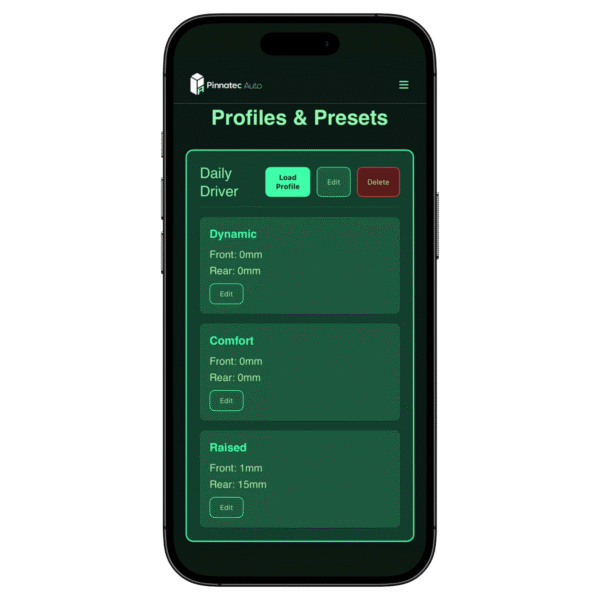

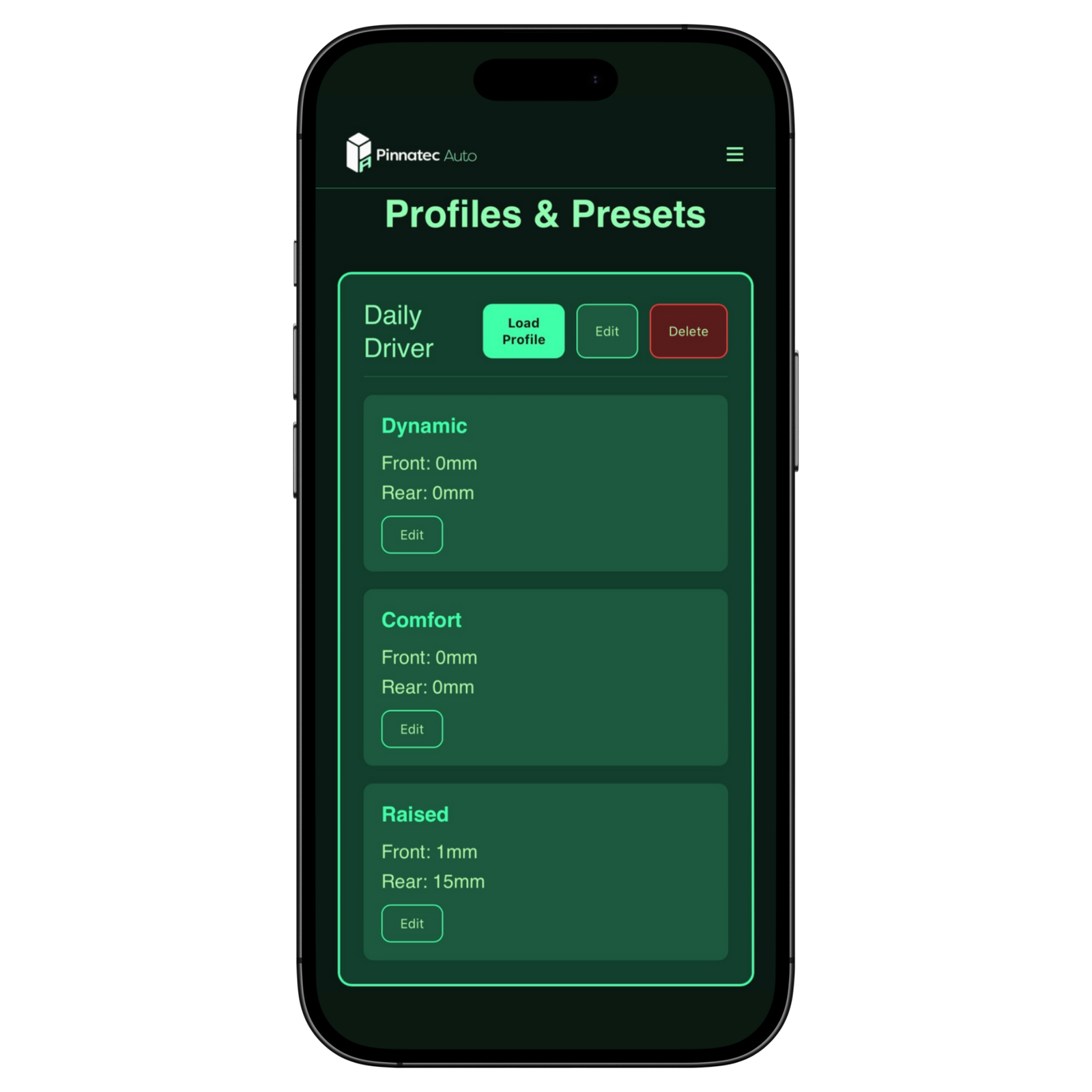

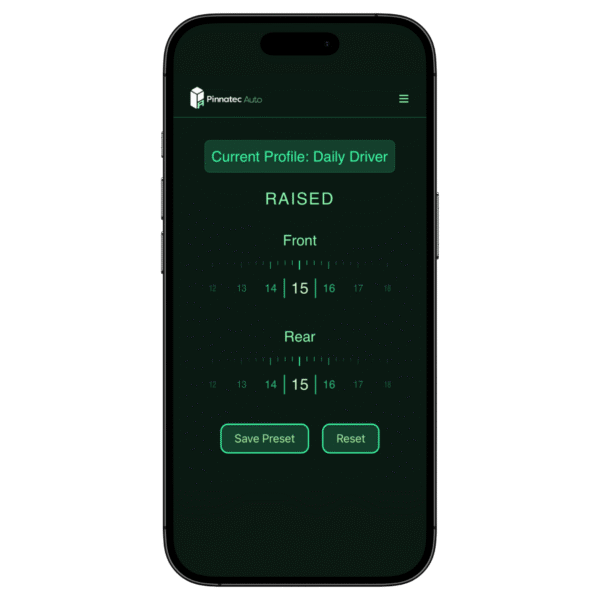

| Drive‑Select Integration | Map Comfort, Dynamic, and Raised to your own presets. Module auto‑switches with OEM drive‑mode change—even drops Raised above 66 mph like stock. |
| Front‑End Lift & Launch Presets | Clear steep driveways or speed bumps instantly, then hit a track‑ready squat mode for better rear traction. |
| OTA Firmware & Future Support | Secure over‑the‑air updates add features, fix bugs, and improve stability—no return shipping, no downtime. |
How It Works
-

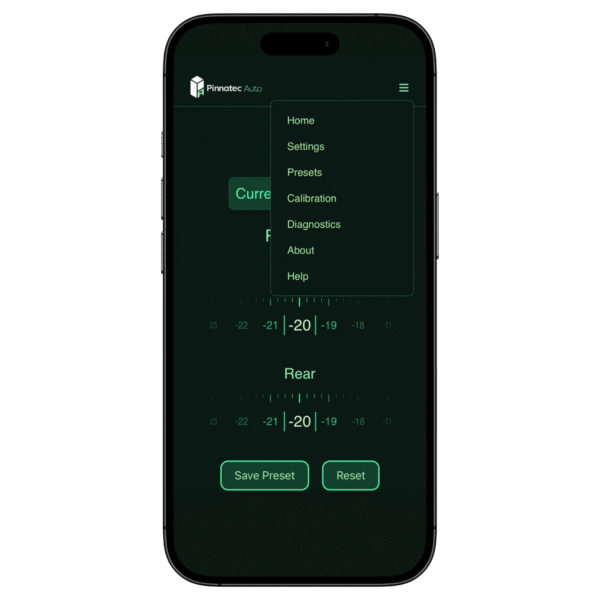

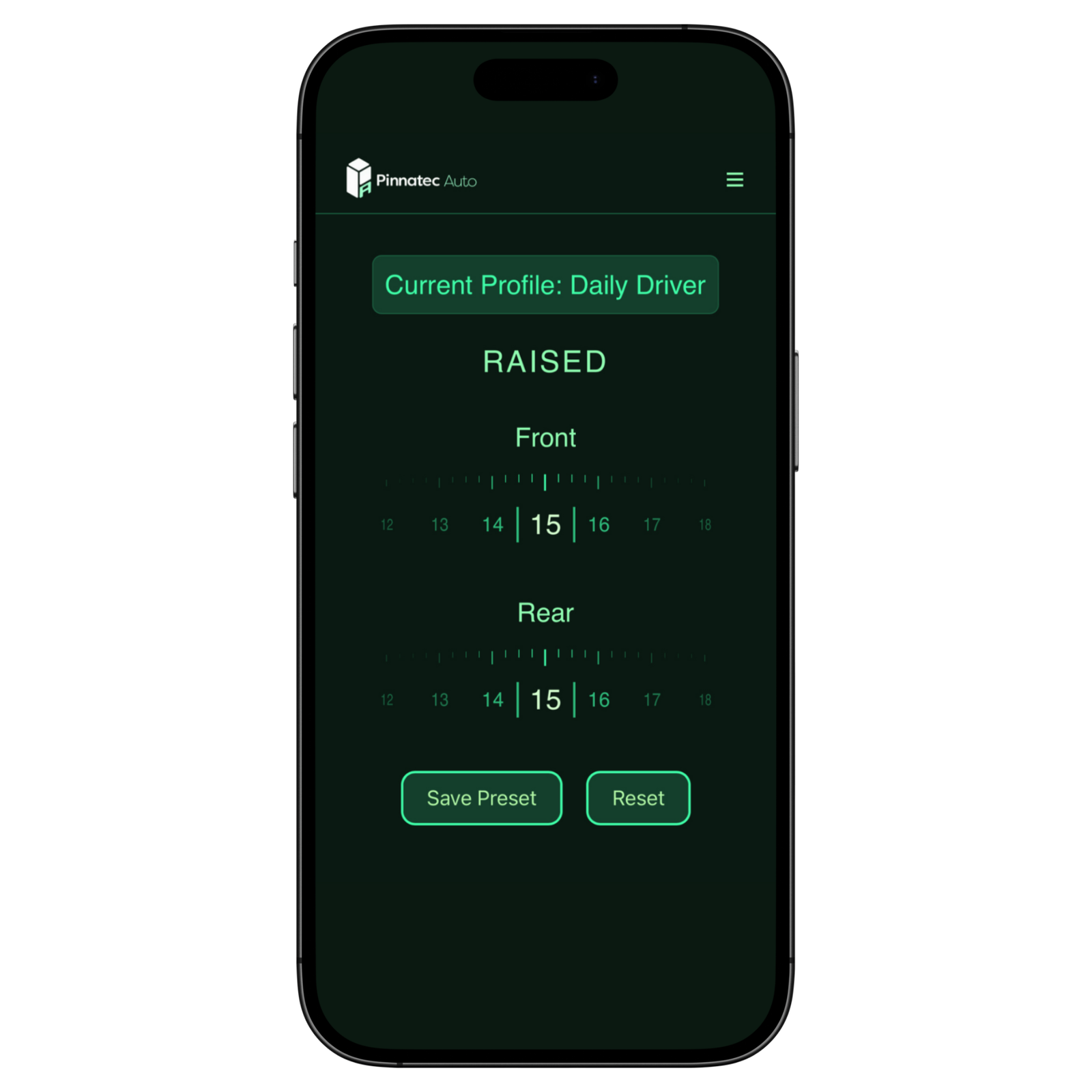

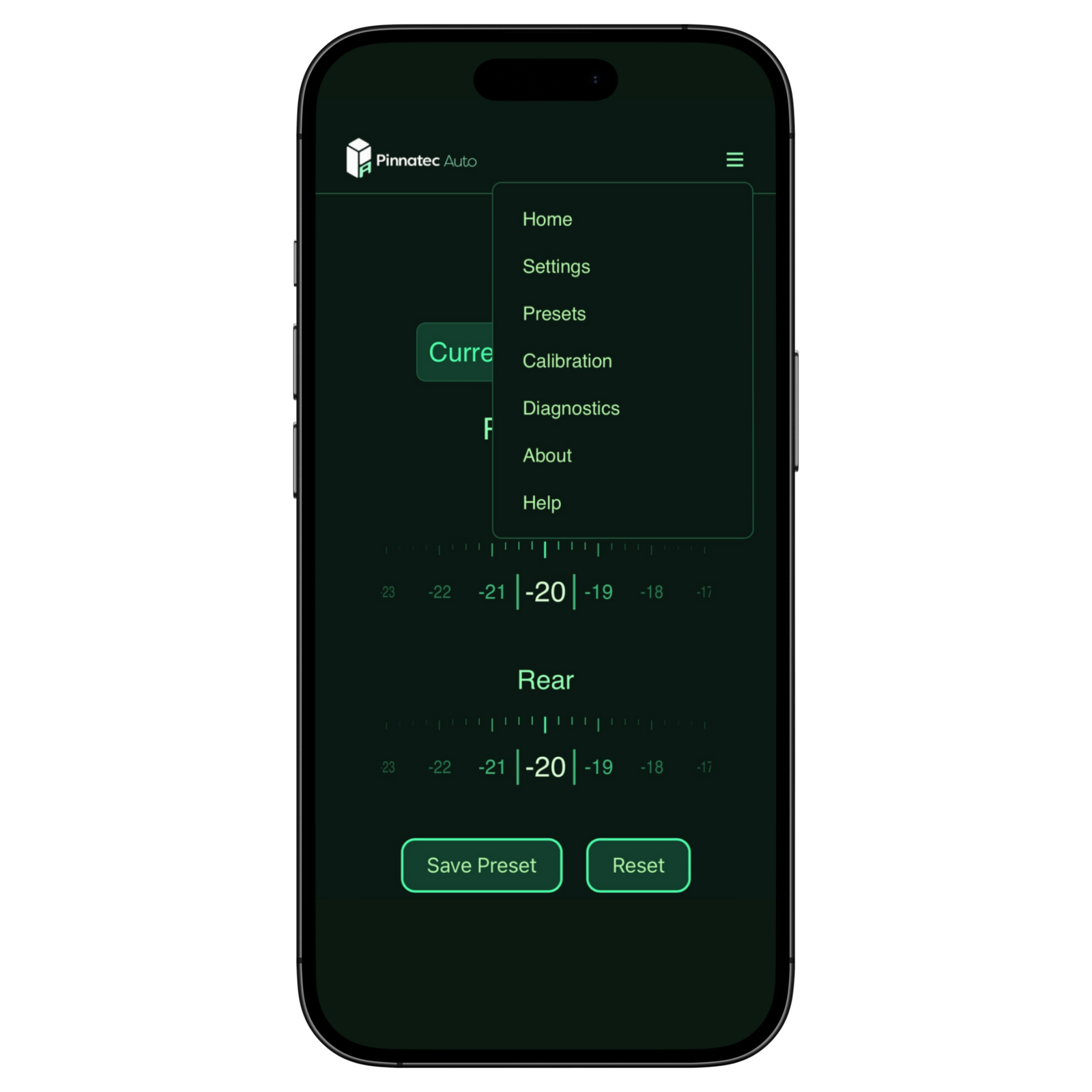

Tap & Go Wi‑Fi – The module hosts its own encrypted 2.4 GHz network. Join on your phone, tablet, or laptop, then land on a lightning‑fast web interface. No downloads, ever.
-
Smart CAN Integration – Virtual Link reads factory height sensors and commands the air‑suspension ECU exactly like OEM logic, so you retain fail‑safes and error monitoring.
-
Safety Envelope – Set your own min/max offsets so you cannot surpass safe limits; built‑in voltage, thermal, and watchdog protections keep electronics and battery safe.
-

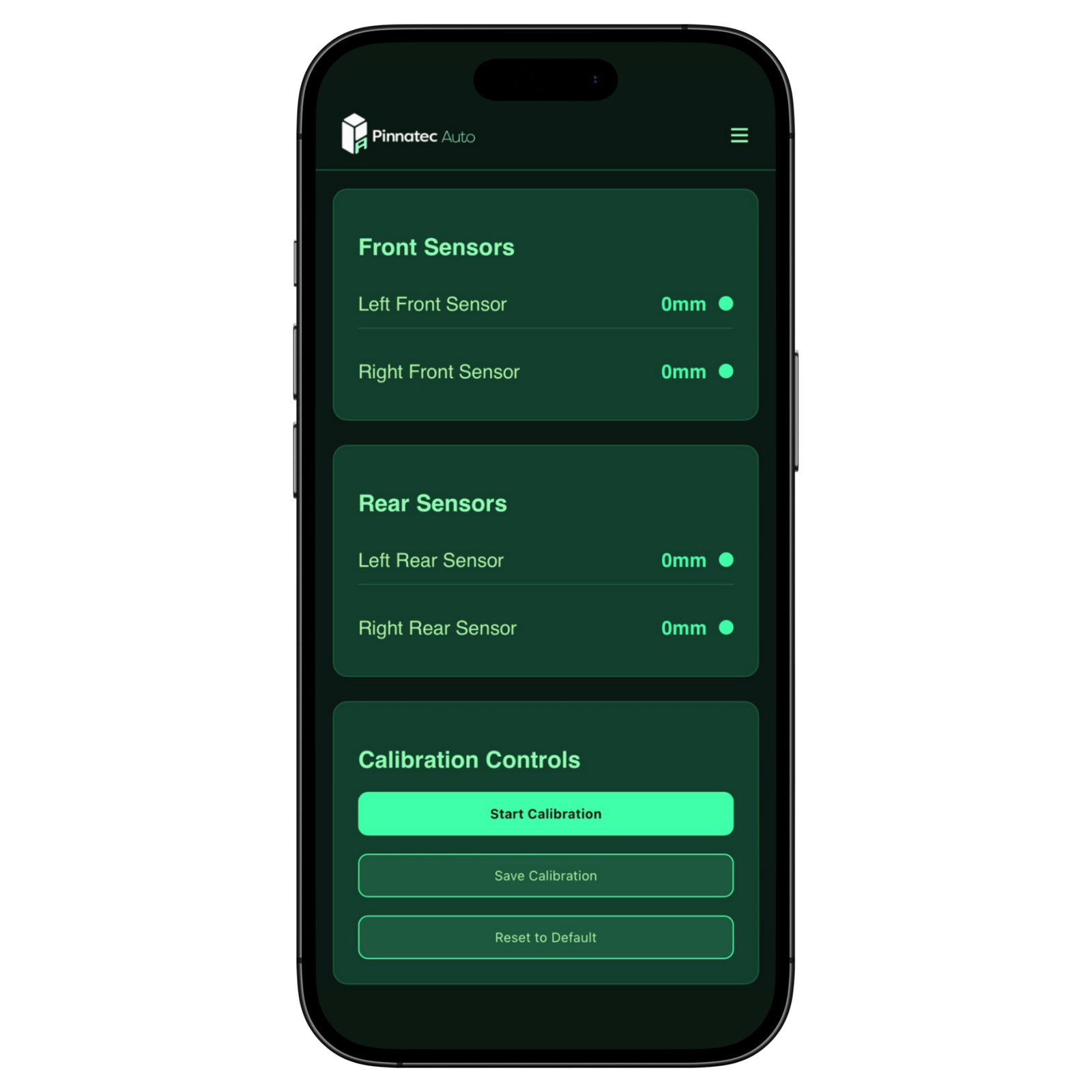

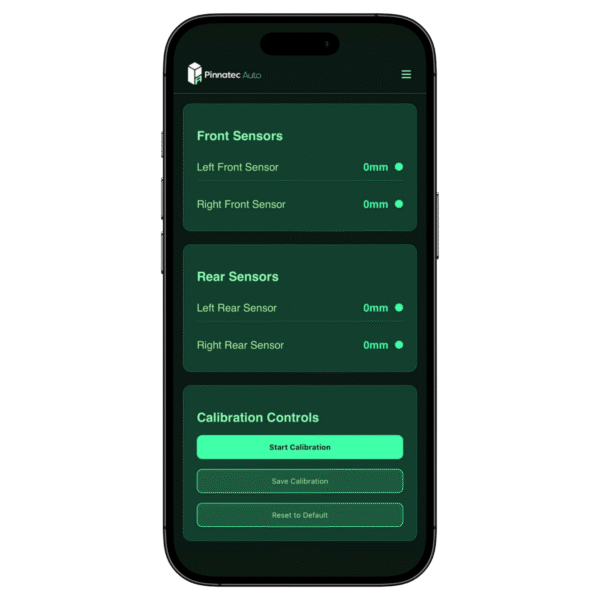

Instant Feedback – See live corner heights in millimetres or inches, plus battery voltage and ECU status. Diagnose leaks or sensor faults in seconds.
Result: Your Audi obeys every stance whim in real time—with the factory ride comfort you paid for.
Built Tough – Inside & Out
-

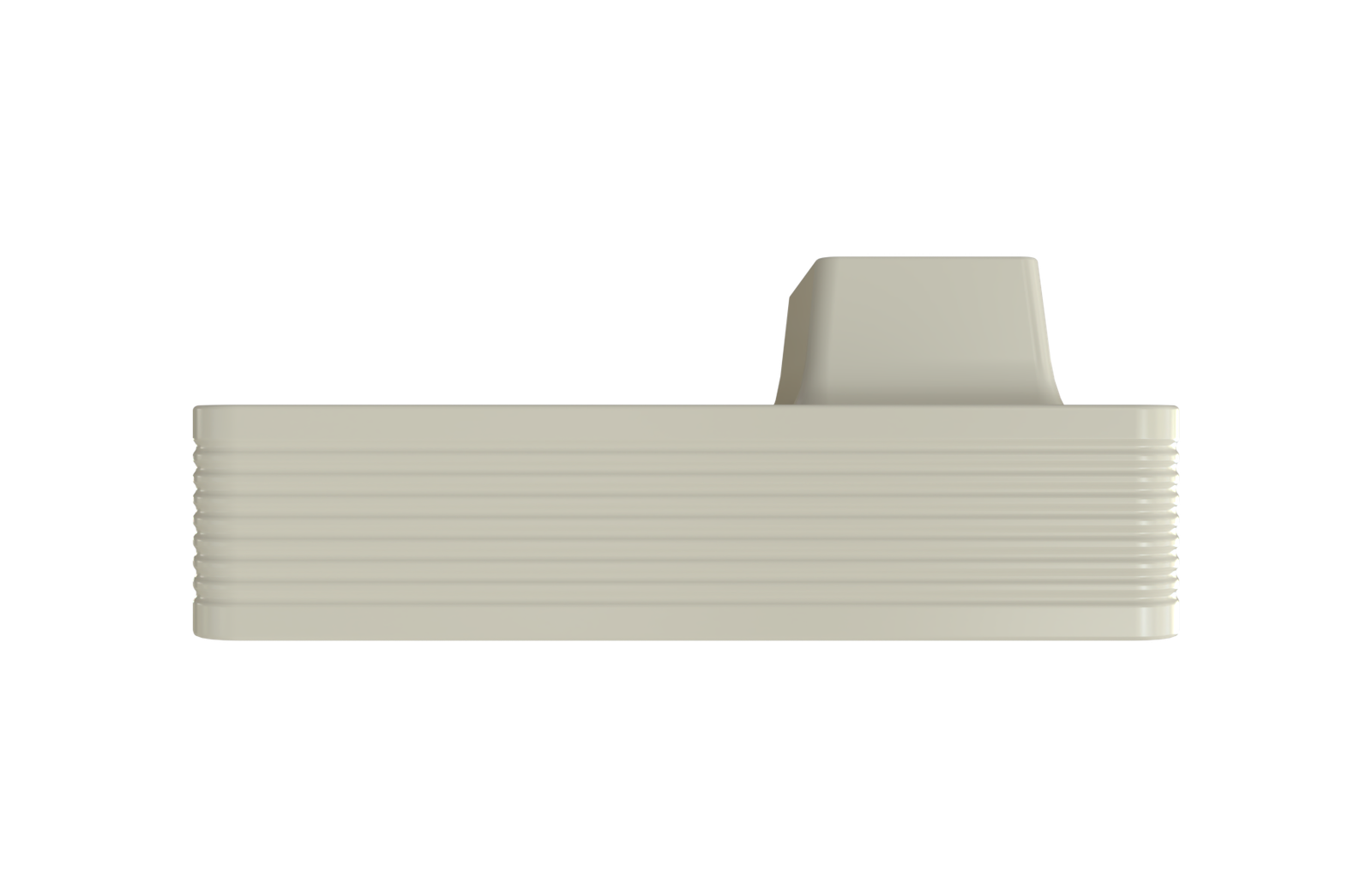

Resin‑Potted Electronics protect against vibration, moisture, and trunk heat.
-
Internal Aluminum Heatsink sinks processor heat for stable Wi‑Fi and long component life.
-
Detachable Harness for ultra‑clean dealer visits—remove in 2 minutes; the car reverts to factory behavior with zero codes left behind.
-
USA Manufacturing means IPC‑class soldering, rigorous QC, and quick turn around tech support from engineers who speak your language.
In the Box
| Qty | Item | Notes |
|---|---|---|

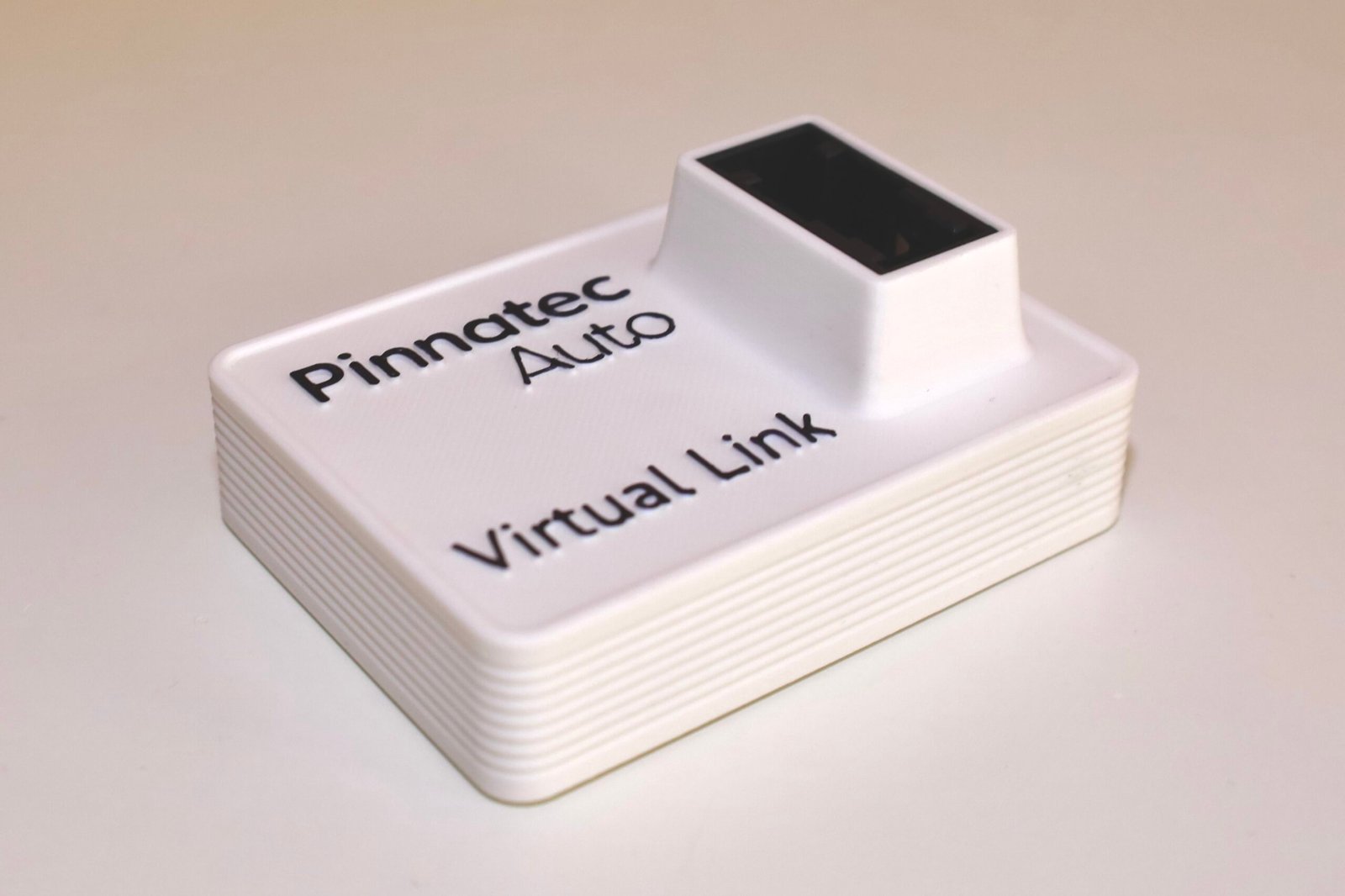

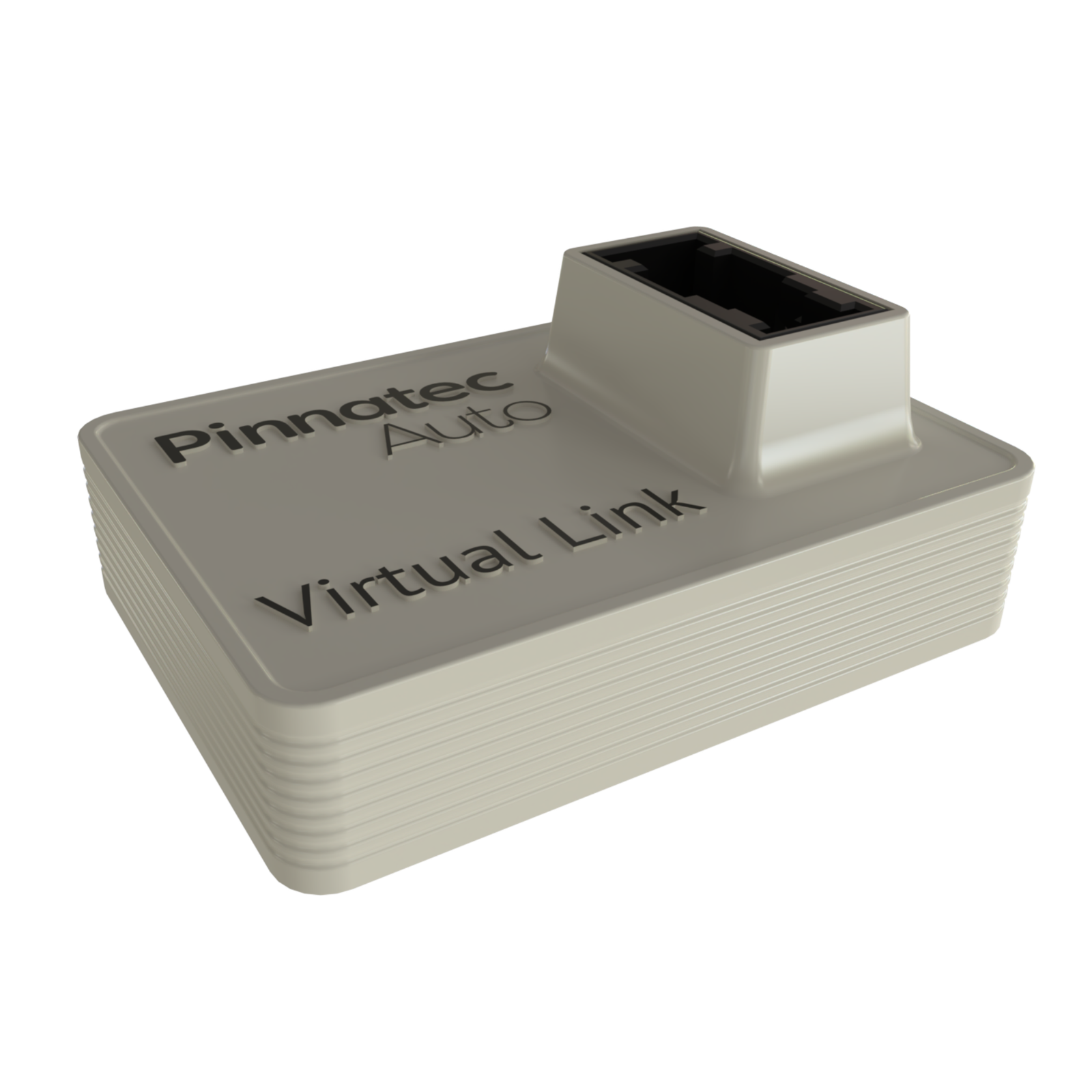

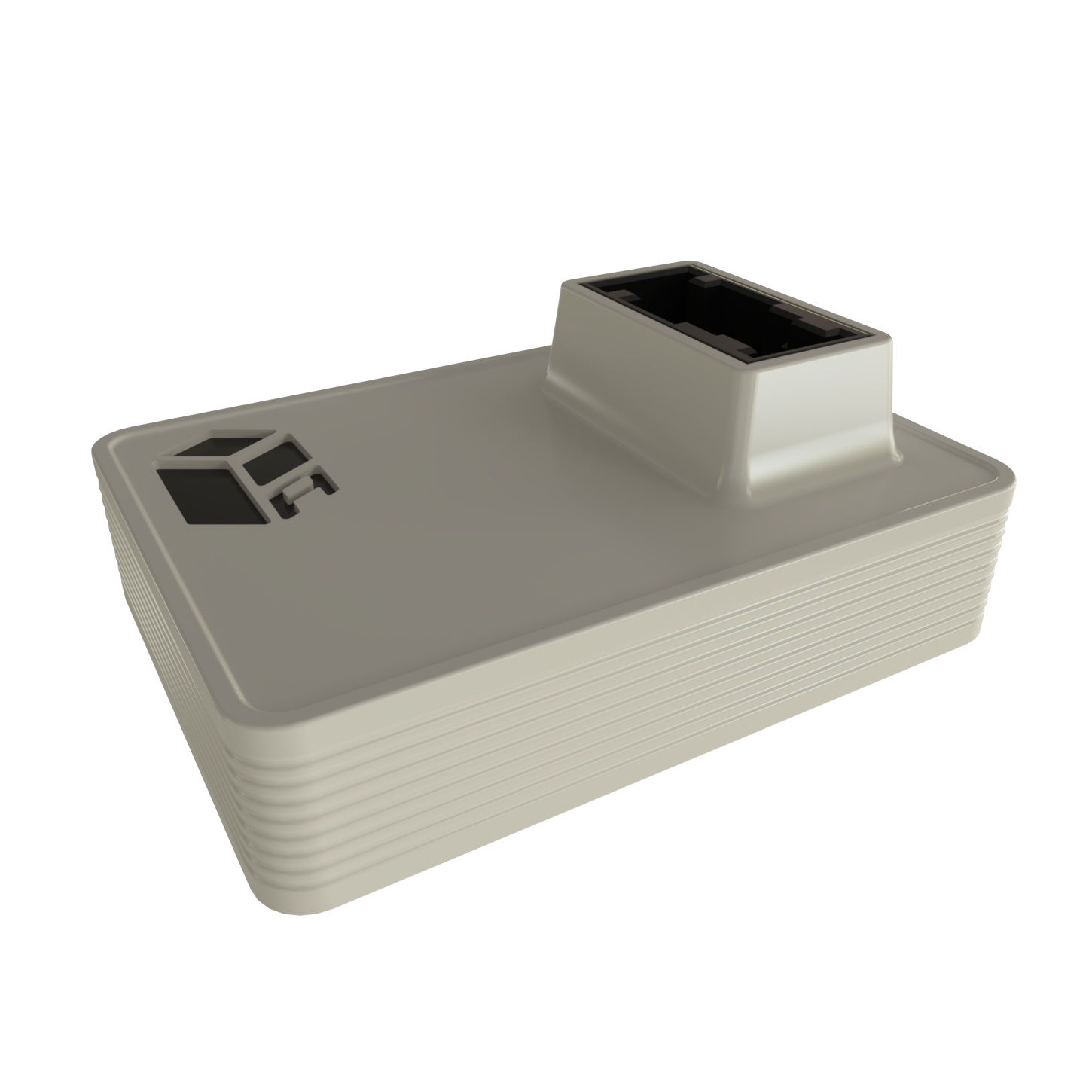

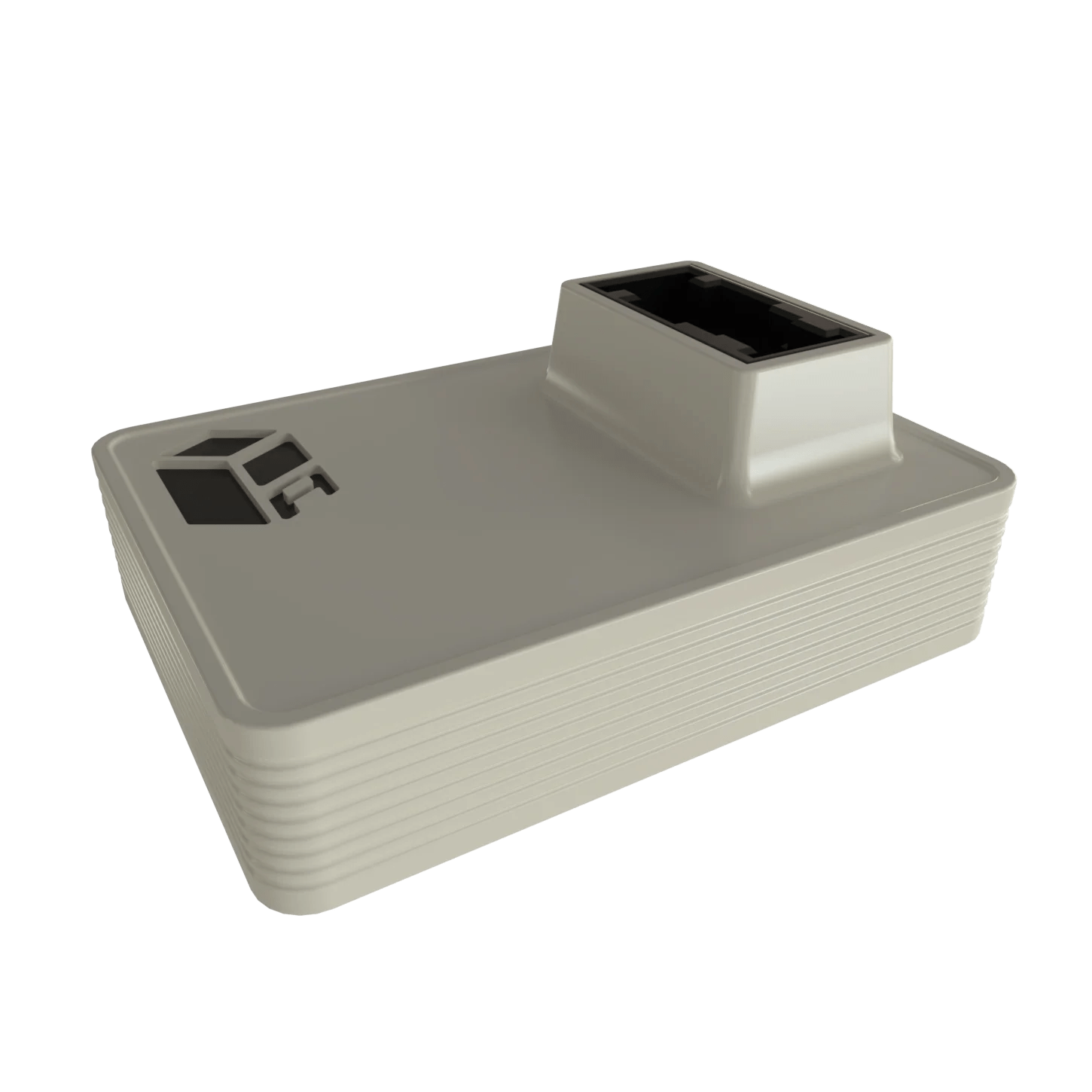

| 1 | Virtual Link Control Module | 60 × 80 × 20 mm, resin‑sealed with internal heatsink |

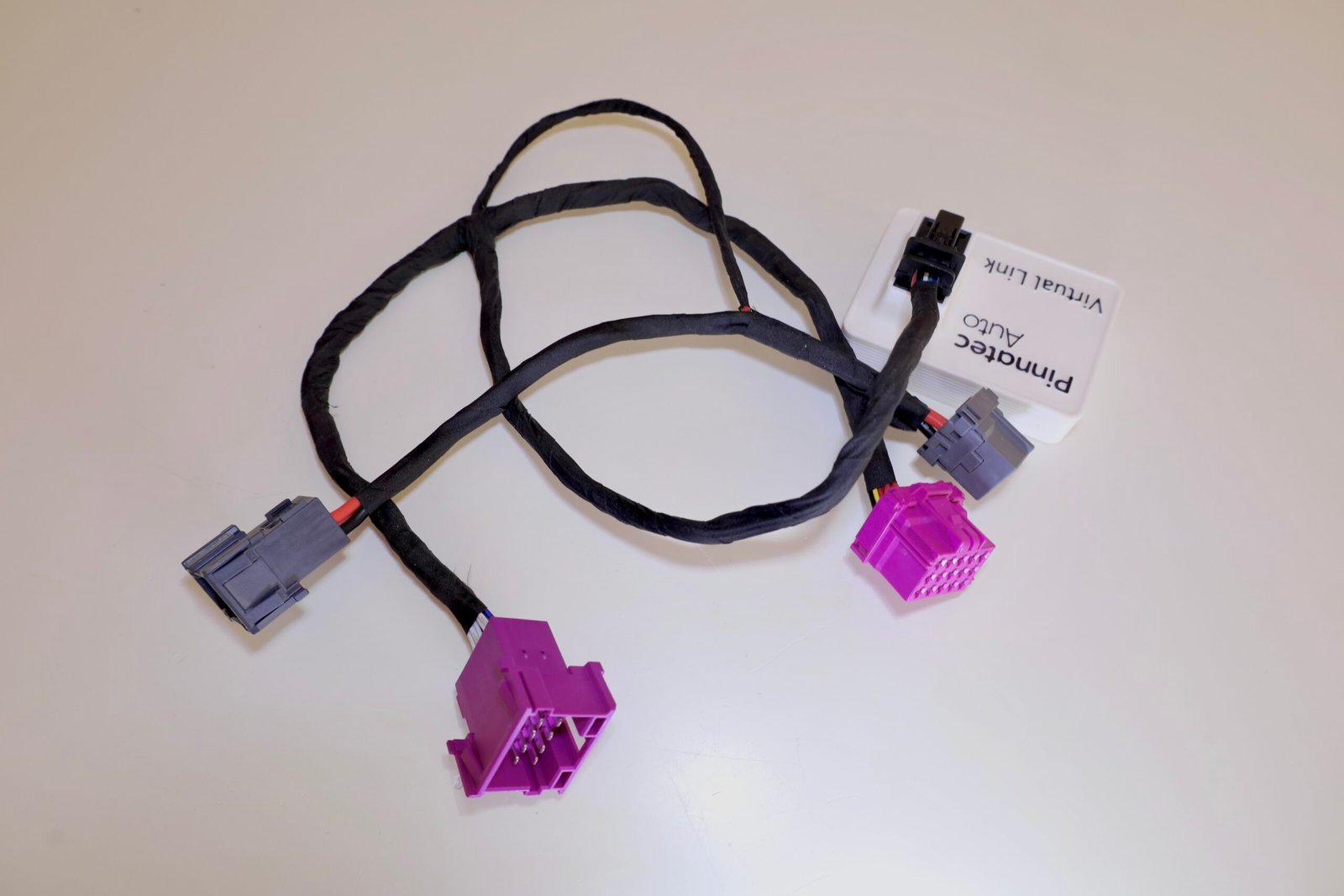

| 1 | OEM Plug‑In Harness | Factory connectors, braided loom, detachable |
| 1 | Quick‑Start Guide (QR) | Scan for full install video & calibration wizard |
| Maybe | Pinnatec Swag | Because car culture is fun |
Installation – Literally a Coffee‑Break Job
-

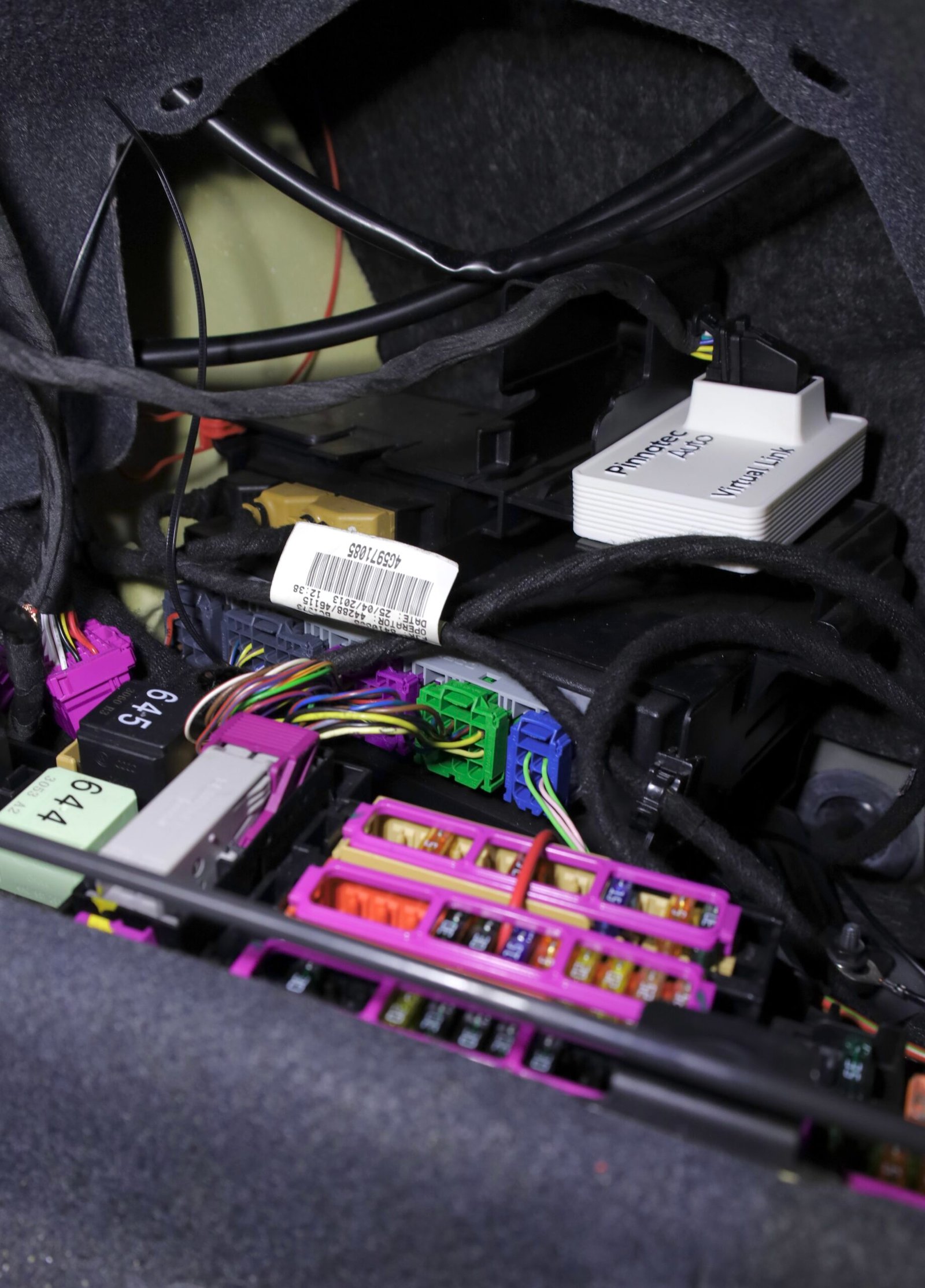

Remove passenger‑side trunk panel.
-
Unplug factory air‑ride connectors, insert harness inline.
-
Clip module to pre‑tapped bracket, refit trim.
-
Join Virtual‑Link Wi‑Fi, run the guided calibration.
-
Stance, cruise, flex—repeat whenever the mood strikes.
Tech Specs
-
Voltage: 9–16 V DC · Sleep draw < 1 mA
-
Connectivity: 2.4 GHz 802.11 b/g/n (AES‑encrypted hotspot)
-
Operating Temp: –20 ℃ → +85 ℃ (–4 ℉ → +185 ℉)
-
Dimensions: 60 × 80 × 20 mm, (≈2.4″ × 3.2″ × 0.8″)
-
Weight (module + harness): 500g
-
Firmware: Updatable OTA; recovery mode failsafe
Compatibility
-
C7 Audi A6 / S6 / RS6 · C7 Audi A7 / S7 / RS7
-
Years 2013 – 2018, factory air‑suspension models only.
-
Compatible with OEM and aftermarket lowering links, OEM and aftermarket ride height sensors, TGK Dumpbox, All tires, upgraded axles, shocks, and airbags.
Got an early C8 or pre‑2013 chassis? Join our mailing list—new platforms in beta now.
Legal & Safety
Pinnatec Auto is not affiliated with Audi AG or Volkswagen Group. “Audi”, “A6”, “S6”, etc. are trademarks of their respective owners and appear for fitment reference only. Off‑road or extreme‑low settings may violate local ride‑height regulations—check your laws. Use of this product constitutes acceptance of pinnatecauto.com/terms-of-sale. User assumes responsibility for safe installation and operation.
Unlock perfect stance and OEM ride comfort—without crawling under your car ever again. Virtual Link: because true enthusiasts demand control.
